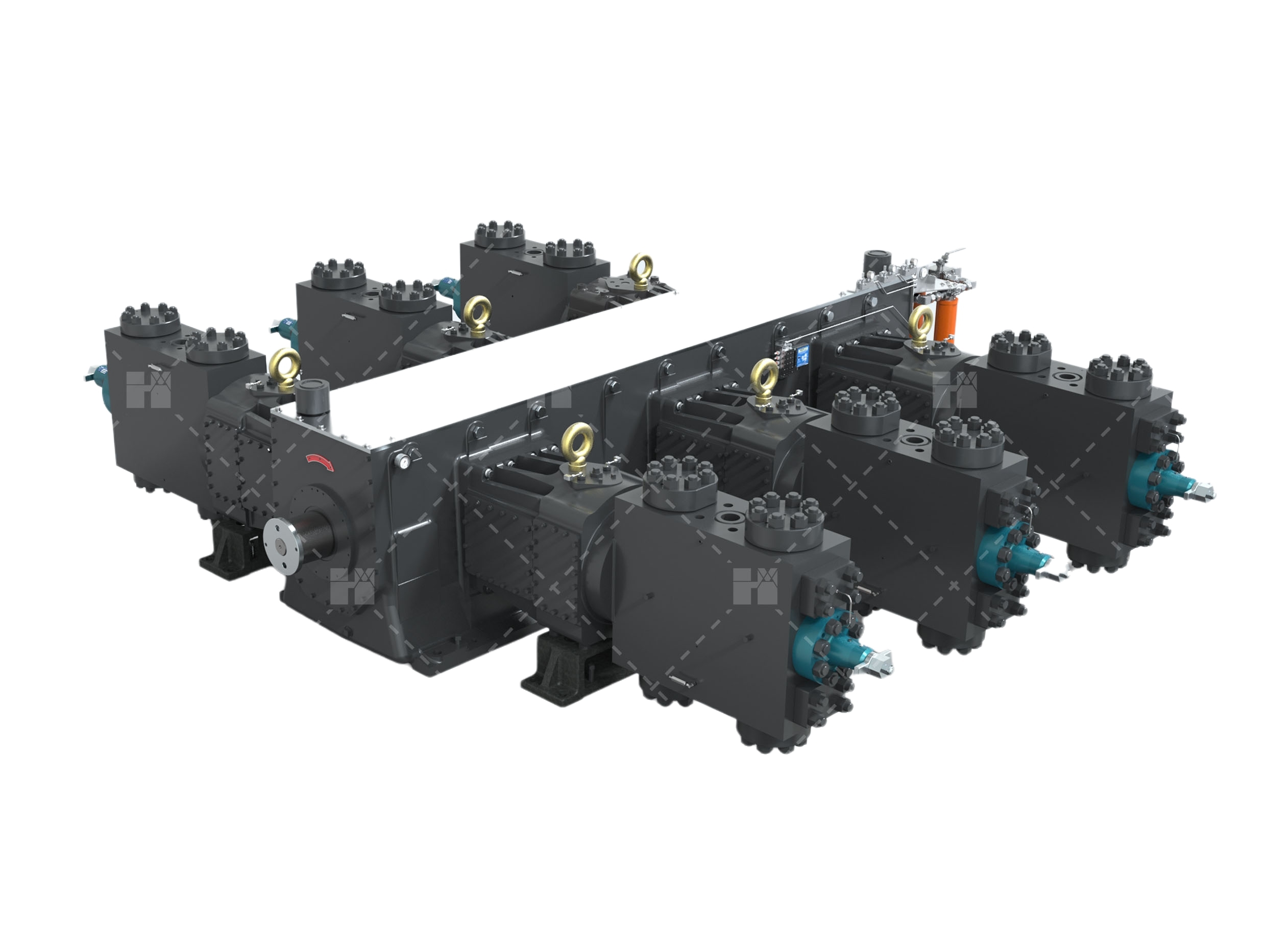

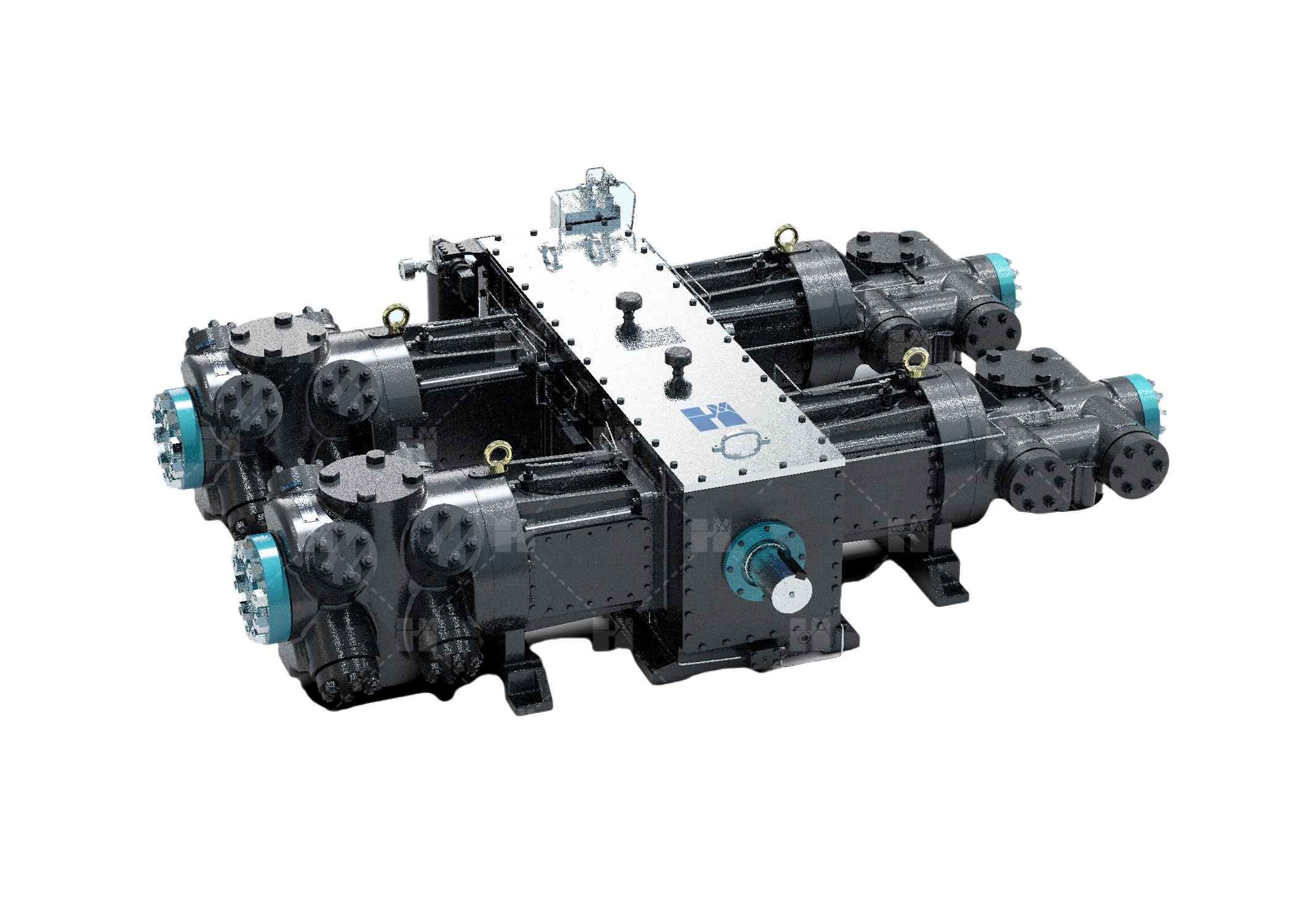

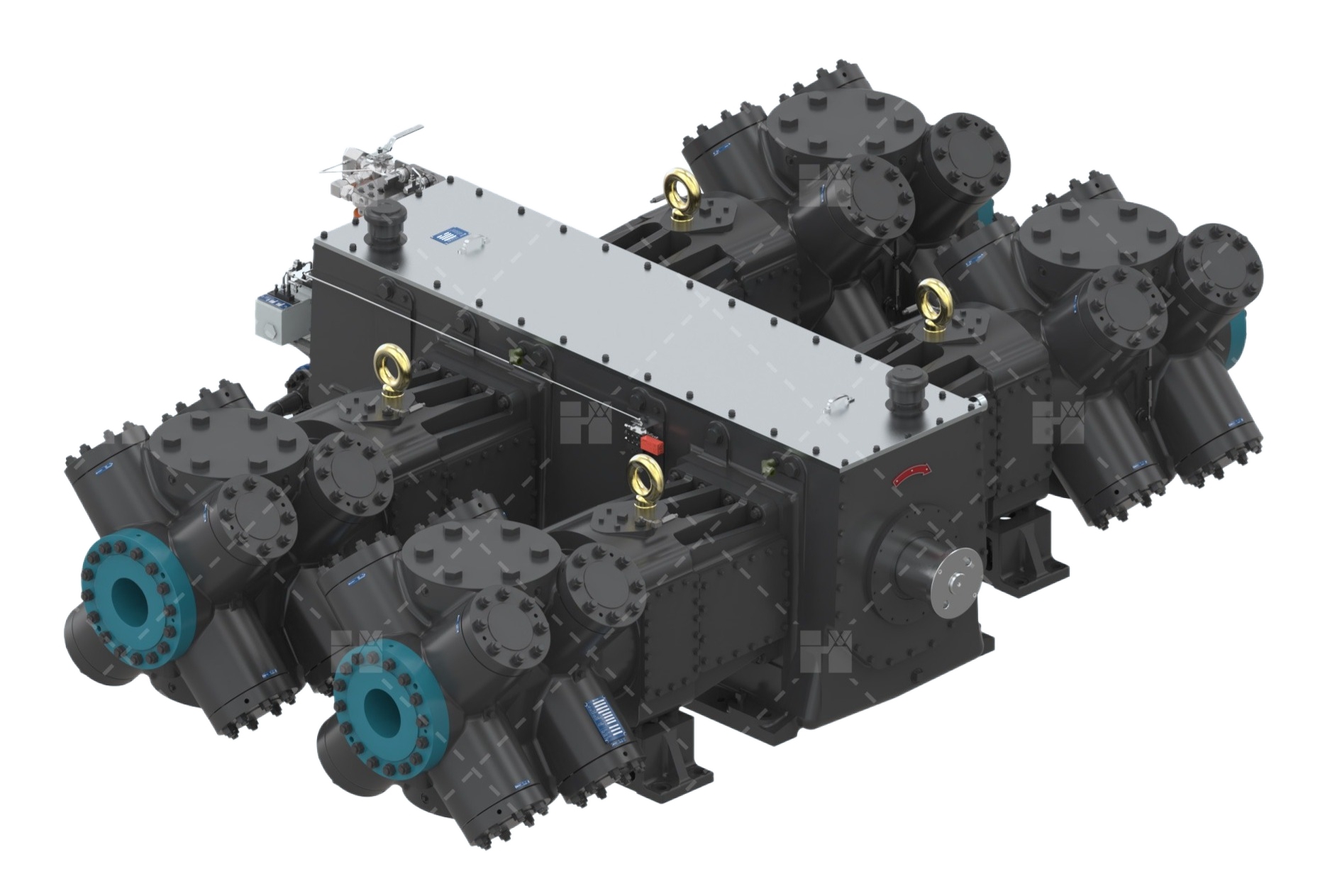

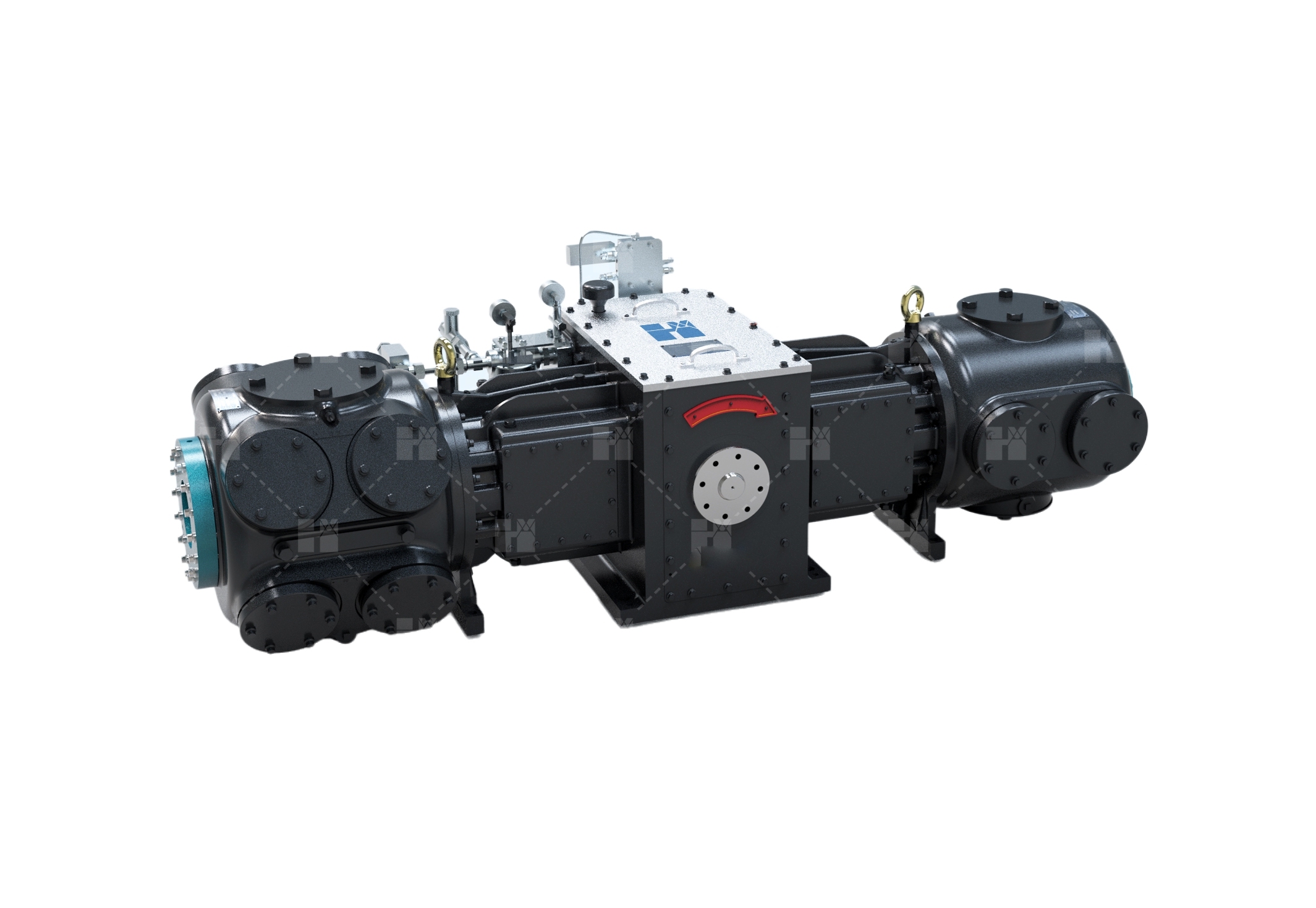

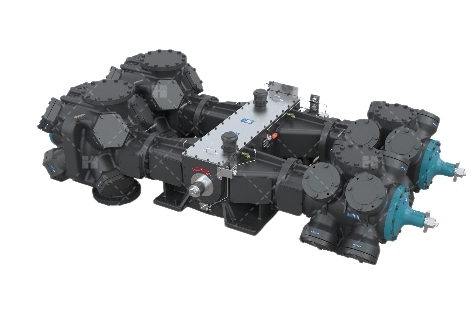

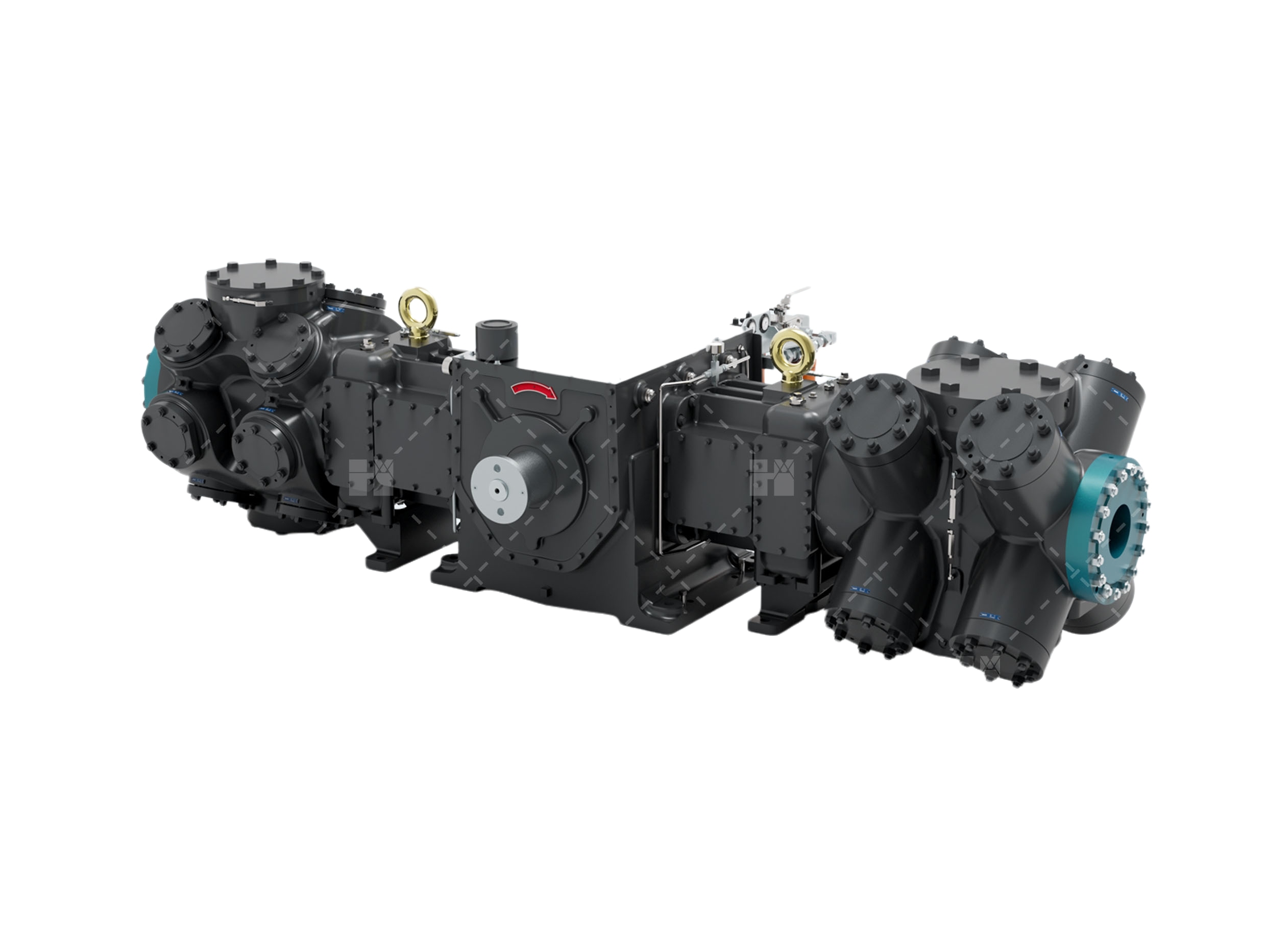

High-speed Reciprocating Compressor

The reciprocating compressor has a power range of 200-5580KW, a maximum speed of 1800PRM, and a maximum exhaust pressure of 50MPa.
 Application:natural gas wellheads, processing plants, gathering and transportation stations, pressure regulating stations, gas storage facilities, offshore platforms, LNG liquefaction plants, CNG filling stations, and other scenarios.
Suitable for conventional natural gas, shale gas, coal-bed methane, air, nitrogen, carbon dioxide and other gas pressurization.
  • High-speed Reciprocating Compressor
  • High-speed Reciprocating Compressor
  • High-speed Reciprocating Compressor
  • High-speed Reciprocating Compressor
  • High-speed Reciprocating Compressor
  • High-speed Reciprocating Compressor

Specification 1

Model Throw Stroke(MM) Power(KW) Rotations(RPM) Speed Dia.of Piston Rod(MM) Max.Gas Rod Load (KN)
CHA  2/4 76 216/432 600-1800/750-1800 28.5 58
CHB  2/4 90 300/600 900-1800 35 66
CHD  2/4 90 450/900 900-1800 40 90
CHE  2/4 127 1000/2000 750-1500 51 175
CHF  2/4 152.5 1350/2700 600-1200 57.5 231
CHG  2//4/6 152.5 1350/2700/4050 600-1200 63.5 289
CHI  2//4/6 178 1860/3720/5580 450-1000 70 334
CHK  2/4 152.5 2250/4500 450-1200 70 334
